What a Bosch Motorsport ABS M5 install actually involves

Quick answer: You don't need a pedal box to run Bosch Motorsport ABS — a factory master cylinder and booster works well. If you do fit one, use ABS-rated master cylinders (AP Racing centre-valve or Tilton 79-Series), size bores to Bosch's ~80 bar lock-pressure optimum, and check front cylinder travel — on big-caliper cars volume, not pressure, is usually the limiting factor. Swapping an OEM booster and tandem master cylinder for a dual-master pedal box is one of the most common upgrades on a serious circuit car. Add Bosch Motorsport ABS to the same build and the master cylinder choice stops being a bolt-on decision and becomes an engineering one — the family, the bore sizes and the balance-bar split all have to suit the ABS as well as the driver. You don't need a pedal box to run ABS Worth saying up front: plenty of ABS M5 installs run the factory master cylinder and booster, and run them with excellent results — the M5 controls pressure downstream of whatever generates it. If the budget covers one major upgrade, the ABS is the one that changes braking performance and repeatability; the pedal box can come later, or not at all. This post is for the builds where both are on the table. The pedal box already suits the M5 The Bosch M5 is a two-circuit system: one hydraulic inlet for the front axle, one for the rear. A balance-bar pedal box is natively front/rear split — two master cylinders, one per circuit — which is exactly the architecture the M5 wants, and a cleaner match than the diagonal-split tandem arrangement most road cars leave the factory with. So when a build does make the move, the conversion suits the ABS perfectly. The catch is what goes in it. Settle the family before the bore We've covered the failure mode in detail elsewhere: under ABS control the system's pumps push fluid back toward the master cylinders, and conventional cut-off-port cylinders can have their seals progressively nibbled by that reverse flow. The consequence goes beyond a deteriorating pedal — seal debris carried downstream ends up inside the ABS hydraulic unit, where it interferes with the valves and degrades control. The hydraulic unit cannot be serviced, flushed or repaired internally: contamination that reaches it means replacing the unit. So the cylinder family is settled first — AP Racing's centre-valve cylinders (the CP7198 line and its siblings) or Tilton's 79-Series, both built for ABS use. That holds for pull-type pedal boxes too: for AP's flagship CP5596 reverse-pull floor-mount box, the matching cylinder is the CP6467 — a pull-type, trunnion-mounted centre-valve unit that AP rates specifically for ABS and high-pressure applications, available in nine bores from 14.9 to 25.4 mm. Only once the family is right does bore sizing begin. Size to the ~80 bar optimum Bosch's M5 manual gives a number most brake-sizing conversations ignore: a locking pressure of around 80 bar is optimal for the ABS. Below it, the system has less pressure resolution to work with and the pedal goes soft; well above it, hydraulic elasticity grows and blunts control quality. So the target isn't just "a firm pedal the driver likes" — it's a line pressure at lock that lands the system in the window the ABS controls best. That turns bore selection into a real calculation. From the car's weight transfer at target deceleration on its actual tyre, you compute the line pressure at which each axle locks, then check it against that ~80 bar figure. On a well-matched package — say a time-attack front end with a six-piston caliper on a 370-odd mm disc — front lock tends to land from the high-60s up to right around 80 bar across the realistic decel band. That's the tell that the caliper, disc and pad are hydraulically well suited to the M5, and that you don't need to fight the numbers with odd master-cylinder bores. The gating check is travel, not pressure Here's the part that catches people out. Once the family is right and the pressure lands in the window, the deciding calculation is usually volume, not pressure. A smaller front bore buys pressure and a lighter pedal — but it costs travel, and with ABS the pedal must never approach the floor mid-control-event, because the system needs travel in reserve while it's cycling. Feeding two large six-piston calipers from a small front cylinder, the front master-cylinder swept volume against the calipers' fluid uptake — pad and caliper compliance, knockback, line swell, plus a margin for what the ABS itself demands — becomes the gating check. Get the pressure right and the travel wrong and the car brakes beautifully until the first ABS event on a bumpy corner. The balance bar still earns its keep People assume ABS makes the balance bar redundant. It doesn't. The mechanical bias still sets the car's behaviour with ABS off — a real map-switch position, and where you want sensible bias if the electronics ever drop out — and it shapes control quality within the ABS range too. A static front bias in the 55–60% region is a sensible starting point, tuned from there on data rather than guessed. ABS-rated doesn't mean fit-and-forget A centre-valve or 79-Series cylinder is built to tolerate ABS operation, not to ignore it. The pressure oscillations and vibration the system feeds back into the hydraulics are still wear drivers, and Bosch's own manual calls for frequent master-cylinder inspection on ABS cars. So the cylinders go on a maintenance schedule like any other wear item — inspected regularly, overhauled or replaced as condition dictates — rather than fitted and forgotten. The short version A factory master cylinder and booster works well with the M5 — the pedal box is the optimisation, not the price of entry. When you do convert, a balance-bar pedal box is the right hydraulic architecture for the M5's two-circuit front/rear system. Settle the master-cylinder family first — AP centre-valve or Tilton 79-Series — before touching bore sizes. The wrong family can shed seal debris into the ABS unit, and the unit can't be cleaned, flushed or repaired — only replaced. Size to Bosch's ~80 bar lock-pressure optimum, not just to pedal feel. On a big-caliper front end, front master-cylinder travel and volume are usually the gating check, not pressure. ABS-rated cylinders still live on a maintenance schedule — inspected, overhauled or replaced as needed. Converting to a pedal box on an ABS car? Talk to us — we size the whole hydraulic circuit as one job. More on ABS-rated cylinders in master cylinders and motorsport ABS, and on the system itself in our Bosch Motorsport ABS guide. 909 Motorsport is an Authorized Bosch Motorsport Dealer in Newcastle NSW. We spec ABS-compatible pedal-box hydraulics — master cylinders, bore sizing and circuit layout — as part of a Motorsport ABS install.

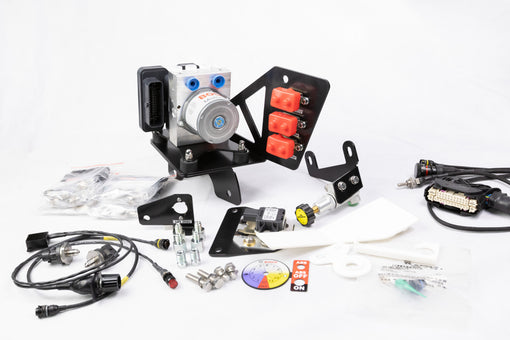

Quick answer: Not every racing master cylinder suits motorsport ABS. The system pumps fluid back through the master cylinder during every control event, and both AP Racing and Tilton advise that conventional cut-off-port cylinders can suffer seal damage under ABS operation — Tilton's 79-Series and AP Racing's centre-valve designs are the ABS-rated options. A Bosch Motorsport ABS M5 kit arrives with everything the braking electronics need: hydraulic unit, sensors, map switch, loom. What it can't include is the part most likely to cause trouble in an ABS conversion — the master cylinders already on the car. What ABS does to a master cylinder In a conventional (non-ABS) system, a master cylinder sees pressure in one direction: pedal in, pressure out. Under ABS control the flow reverses — during every control event the system's pumps push fluid back toward the master cylinders, exposing the cylinder seals to pressure pulsation they were never designed to see. Bosch's ABS M5 documentation requires frequent master cylinder inspection for exactly this reason. And the pedal-box manufacturers say the same thing from their side: both AP Racing and Tilton publish advisories that conventional racing master cylinders — specifically designs with cut-off ports — can suffer seal damage under ABS operation. The failure mode The seal damage is progressive and mostly invisible: the leading edge of the primary seal passes the cut-off port under reverse flow, and each pass nibbles at it. The symptom, when it finally shows, is a soft pedal or a slow fluid loss — in a car that brakes deeper and harder than anything on the road. And the seal isn't the end of it. The material those passes remove has to go somewhere, and under ABS operation it's carried downstream into the hydraulic unit, where debris interferes with the valves and degrades control. The hydraulic unit can't be serviced, flushed or repaired internally — contamination that reaches it means replacing the unit. A worn seal is a master-cylinder overhaul; what it sheds can write off the most expensive hydraulic component in the braking system. It's not a risk worth carrying to save a master cylinder swap. What to run instead Both major pedal-box makers build ABS-rated master cylinders: Tilton 79-Series — designed for ABS use, and the compact package suits most pedal-box installs. AP Racing centre-valve cylinders — the centre-valve architecture removes the cut-off-port interaction entirely. The family covers pull-type installs too: the CP6467 trunnion-mount cylinder suits AP's CP5596 reverse-pull pedal box and is rated by AP for ABS and high-pressure applications. If a pedal box is going in at the same time as the ABS — a common pairing in time-attack and circuit builds — the master cylinder spec should be part of the ABS order, not an afterthought. Bore sizing also interacts with the ABS calibration and pedal feel, so it's worth confirming the whole hydraulic spec at once. The short version Motorsport ABS reverses fluid flow into the master cylinders; cut-off-port cylinders can suffer seal damage — and shed debris into the ABS hydraulic unit, which can't be cleaned, flushed or repaired — only replaced. Bosch requires regular MC inspection on ABS cars; AP Racing and Tilton both publish ABS advisories. Tilton 79-Series and AP Racing centre-valve cylinders are the ABS-rated choices. Speccing the ABS kit? Ask us to confirm the master cylinder spec at the same time — it affects both safety and ABS performance. More on the system itself — kits, sensors, maps and install — in our Bosch Motorsport ABS guide. 909 Motorsport is an Authorized Bosch Motorsport Dealer in Newcastle NSW.

Quick answer: Factory ABS is calibrated for road tyres and conservative early intervention. Bosch Motorsport ABS — the ABS M5 — is calibrated for slicks, aero load and driver control: 11 selectable maps plus ABS off, running independently of the engine ECU. Every modern car ships with ABS, and most of them brake well on the road. So when a customer asks why a competition car needs a $12k–$25k Bosch Motorsport ABS kit when the factory system was free, it deserves a straight answer. The factory system is calibrated for a different job A production ABS calibration has to work for every driver, on road tyres, on public roads, with liability in mind. It intervenes early and conservatively, because its job is keeping an average driver pointed straight in the wet. A race car breaks all of those assumptions at once: slick or semi-slick tyres with far higher peak grip, a competition brake package, aero load that changes with speed, and a driver deliberately working the tyre at its limit. Against that, a factory calibration gives up grip it doesn't know exists — it releases brake pressure long before a slick tyre has reached its peak slip. What the Motorsport ABS M5 does differently The Bosch Motorsport ABS M5 is built and calibrated for exactly that environment: 11 driver-selectable control maps on a 12-position cockpit switch — from a most-sensitive setting for heavy rain through to the most aggressive dry-slick calibration, plus ABS OFF. The driver changes strategy corner to corner if conditions demand it. Six-axis sensing. Four active DF11 wheel-speed sensors, front and rear brake-pressure sensors, and the MM7.10 inertial measurement unit reading all six axes of vehicle motion — longitudinal, lateral and vertical acceleration plus yaw, roll and pitch rates. Production systems read wheel speeds and pressures too; the difference is the completeness of the picture. The M5 knows the difference between a locked wheel and a loaded one mid-corner, over a crest or riding a kerb. Hardware rated for the duty. Twin-circuit hydraulic unit — two valves per wheel, two high-pressure pumps, twin accumulators — 1,910 grams, rated to 360 km/h, −30 to 130 °C. Figures from the Bosch ABS M5 Kit data sheet (PDF). Data out. Wheel speeds and system status broadcast on CAN for the dash and logger, so braking performance is reviewable data, not a feeling. Independent of the engine ECU One point that surprises people: motorsport ABS has nothing to do with engine management. The M5 reads wheel speeds, brake pressures and chassis motion directly, so it runs alongside any ECU — MoTeC, Emtron, Haltech or Bosch. Neither MoTeC nor Emtron make a motorsport ABS, so builds on those platforms run the Bosch unit next to their existing electronics. Where the lap time comes from Braking later is the obvious answer, but the repeatable gain is consistency: the same brake performance on lap 20 as lap 2, in traffic, on worn tyres, with a driver who can commit to the pedal knowing the system will manage the lockup. That consistency is also a safety margin — the difference between a flat spot and a shunt is often one locked wheel at the wrong moment. Not our words alone — High Performance Academy's independent take: What about retrofitting a production unit from another car? A well-worn path in club motorsport is transplanting the ABS from a donor car with a better-than-average factory system into the race car. The appeal is obvious — the hardware is cheap and plentiful, and on a car that never had ABS the seat-of-the-pants difference feels convincing. The engineering question is what the system is actually doing once it's in. A production unit carries one fixed calibration, developed for the donor car: its weight, its brake package, its road tyres, its liability-driven early intervention. Move it into a different car on slicks and that calibration now knows even less about what it's controlling than the original factory system did. And a second-hand hydraulic unit arrives with an unknown service history that can't be checked — as we've covered, a unit's internals can't be inspected, cleaned or repaired. Re-flashed calibrations from sportier variants of the donor exist, and custom calibrations are claimed. Taking those at face value doesn't change the structure of the problem: it's still one calibration, written for one set of conditions, frozen at install — no way for the driver to change strategy corner to corner, no documentation of what's actually in it, and no support behind it. Eleven selectable, documented calibrations on a cockpit switch is a different category of system, not a better flash. The factual way to put it: a retrofit answers "can this car have ABS hardware for very little money?" Motorsport ABS answers a different question: "can braking be a calibrated, adjustable, supported part of this car's performance?" Know which question your build is asking before you spend either amount. The sharp end of the argument: the record-breaking Lamspeed Racing GR Yaris, featured on the Bosch Motorsport stand at World Time Attack Challenge 2024, runs exactly this system. Choosing a kit The M5 comes as complete kits — the choice is mostly about wiring and the car. The Clubsport kit uses a generic harness and is the usual entry for club and time-attack builds; the Standard kit is built around a vehicle-specific loom; plug-and-play kits exist for the Porsche Cup cars, and we build vehicle-specific integration kits of our own. The full chooser is on our Bosch Motorsport ABS guide, or talk to us about your build. 909 Motorsport is an Authorized Bosch Motorsport Dealer in Newcastle NSW. We supply, install and support Motorsport ABS across Australia.
