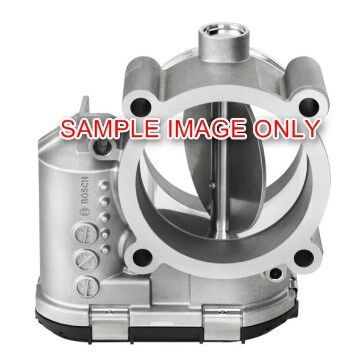

Bosch Electronic Throttle Body (46mm bore)

Bosch part number: F02U.V01.171-01 (F02UV01171-01)

Electronic throttle body, 46 mm bore, drive-by-wire air control for spark-ignition engines running an ETC-capable ECU.

- Twin redundant position sensors (0-5 V and 5-0 V opposing outputs) with an idle default position
- 6-16 V supply; -40 to 140°C; flex-fuel, CNG and LPG permissible when injected downstream of the throttle
- Connects directly to ECUs with electronic throttle control, the MS 6 EVO range reserves dual H-bridge outputs and safety-strategy inputs for exactly this

Choosing a bore
The family spans 32 to 82 mm bores (this is the 46 mm unit), bore size follows engine airflow demand. See our Electronic Throttles range for the full ladder, or talk to us to size the throttle to your engine. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Data sheet (PDF)
