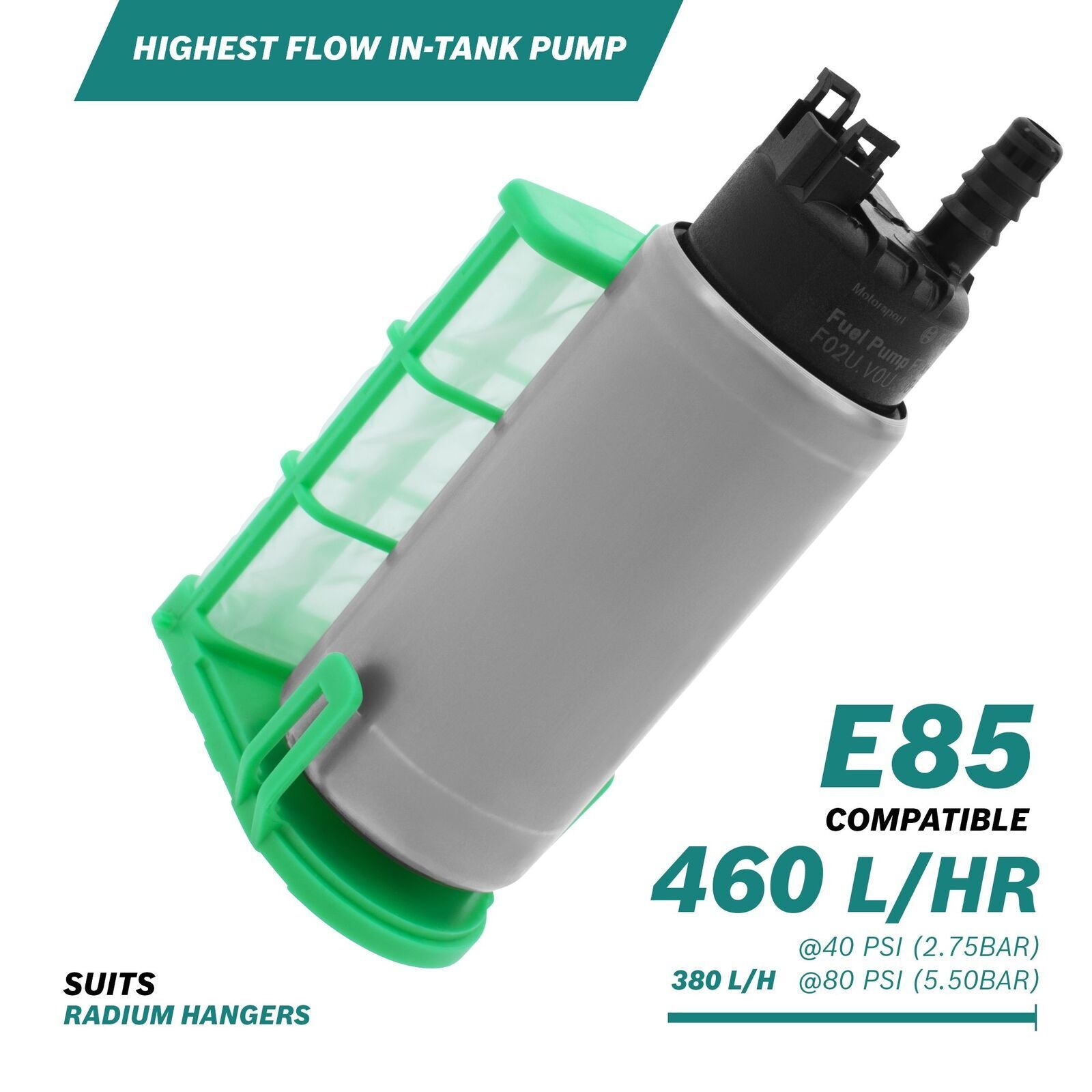

Bosch FPx-HF - In-tank Fuel Pump. Up to 540 l/h (BR540)

Bosch part number: F02U.V0U.343-01 (F02UV0U343-01)

Specifically released by Bosch Motorsport (FPx-HF, F 02U V0U 343-01) and ONLY available direct or through Bosch Motorsport stockists

Highest flowing Bosch in-tank fuel pump available!!

Up to 540 l/h @ open flow
Up to 460 l/h @ 40Psi (2.75bar)
Up to 380 l/h @ 80Psi (5.5bar)
An amazing 270l/h @ 145Psi (10.0bar)
High flow all the way up to the 190Psi (13.0bar) Pressure Relief Valve setting
9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose
Light weight (550 grams) and Compact 46mm body size
Includes electrical connector with wires
Includes High flow filter
Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)

NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump. This pump has been released by Bosch Motorsport only for motorsport/offroad applications.

Specifications

Application and model suitability:

Generic use
Custom applications
May require custom fittings & adaptors


In-tank motorsport fuel supply
The FPx-HF is the high-flow in-tank pump of the Bosch Motorsport range, up to 540 l/h. Pair the pump with the right regulator for your rail: see the 5 bar fuel pressure regulator and the FPR adaptor housing for inline mounting. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.
