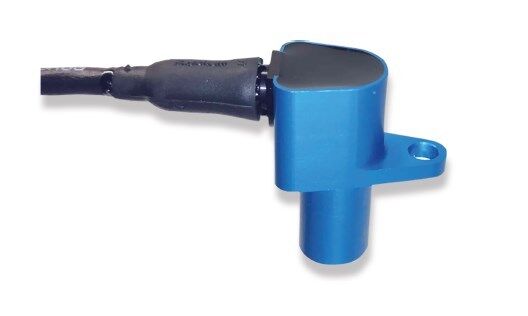

Bosch Hall Effect Speed sensor - HA-N (w. fly lead)

Bosch part number: F02U.V0U.714-90 (F02UV0U714-90)

Incremental Hall-effect speed sensor (HA-N) for camshaft, crankshaft or wheel speed, lightweight aluminium housing, direct connection to most ECUs and loggers.

- Up to 4.2 kHz; air gap 0.5-1.5 mm; -40 to 160°C
- Active-low open-collector output; repeatability <4% on the falling edge
- 5-18 V supply; 10 mm bore, 14 mm installation depth, 6 Nm
- Terminated: 1,000 mm flying lead (WHT/ORG = Vs, WHT/BLU = GND, WHT = signal); 28.5 grams with wire

How Hall-effect speed sensing works
A ferromagnetic target wheel rotating past the sensor modulates the magnetic field at the Hall element; integrated conditioning turns that into a clean digital signal for cam, crank or wheel speed. The HA-N element is selected for resistance to demagnetisation at high temperature and is approved for NASCAR competition as a camshaft sensor.

Also available with an AS motorsport connector (254 mm lead). Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Data sheet (PDF)
