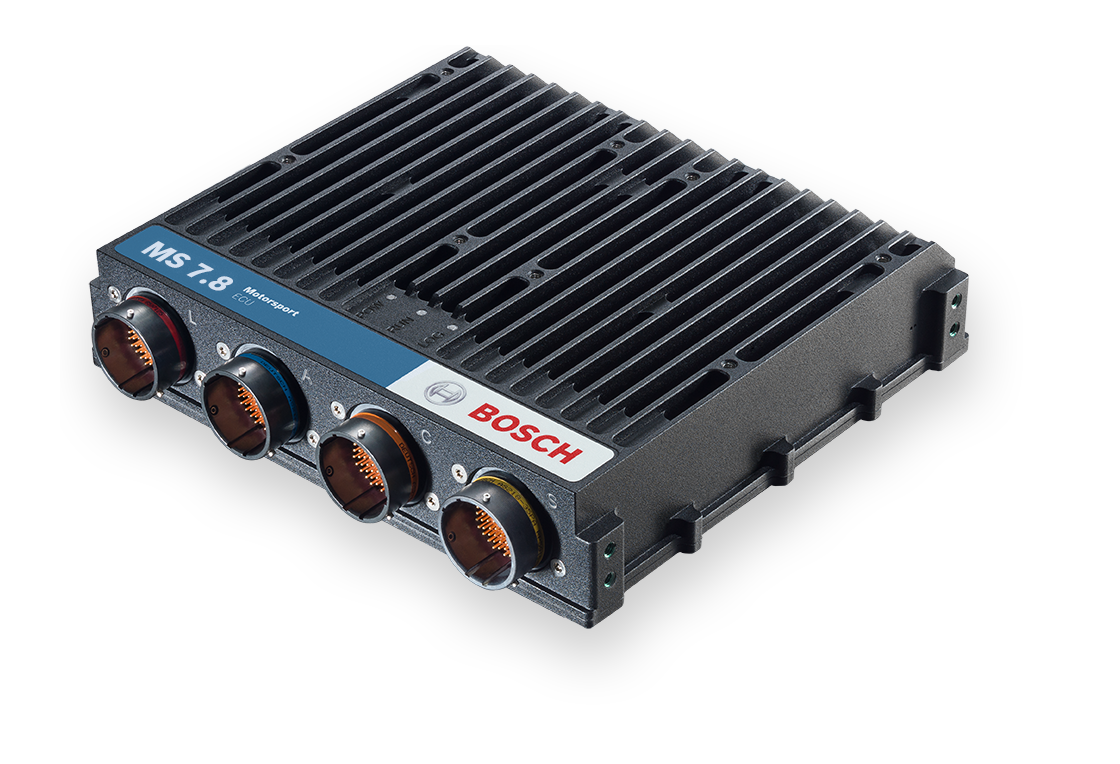

Bosch MS 7.8-ADV ECU

Bosch part number: F02U.V03.316-02 (F02UV03316-02)

The MS 7.8 developed for use with the Bosch LSU ADV lambda sensor — the newer wideband generation with higher maximum hexagon temperature.

- 2x lambda interfaces for LSU ADV sensor types

- High-pressure (direct) injection: triple-injection power stages — 4 cylinders to 14,600 rpm, 6 to 9,700 rpm, 8 to 7,300 rpm; HP package for flat and V engines included (2nd bank, fuel control valve 2, cylinders 9–12)
- Port injection: up to 12 cylinders to 16,000 rpm (12x 2.2 A outputs, high-impedance)
- 46 analog inputs + 8 shared analog/digital/SENT + 12 digital inputs; 12x ignition
- Logging enabled as standard: FULL_LOG_1 (4 GB) + FULL_LOG_2 (4 GB) + DATA_USB; PERF_LOG_1 (16 GB) optional; download up to 6.2 MB/s
- 5x CAN (3 CAN-FD capable); LTE/Ethernet telemetry support; dual-core 1 GHz CPU with FPGA
- Dual electronic-throttle safety strategy; turbo, traction and launch control standard
- MATLAB/Simulink code generation for custom functions
- 198 x 180 x 42 mm, 1,560 grams; 6–18 V supply; -20 to 85°C

Where it sits
The MS 7 is the professional platform above the MS 6 EVO range — more inputs, faster processing, higher injection speed ranges and full logging enabled out of the box. Not sure what your programme needs? Talk to us — 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Data sheet (PDF)
