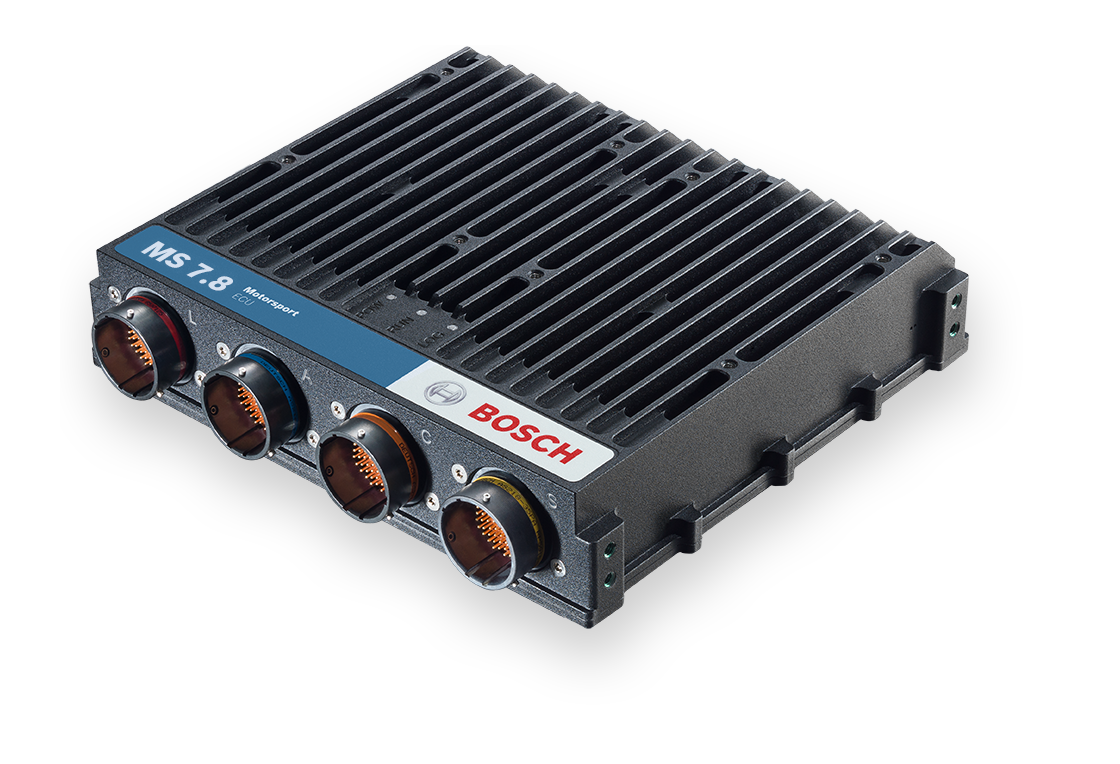

Bosch MS 7.8 ECU

Bosch part number: F02U.V03.249-02 (F02UV03249-02)

Bosch Motorsport's professional-tier engine control unit, direct + port injection for engines up to 12 cylinders.

- 2x lambda interfaces for LSU 4.9 sensor types

- High-pressure (direct) injection: triple-injection power stages: 4 cylinders to 14,600 rpm, 6 to 9,700 rpm, 8 to 7,300 rpm; HP package for flat and V engines included (2nd bank, fuel control valve 2, cylinders 9-12)
- Port injection: up to 12 cylinders to 16,000 rpm (12x 2.2 A outputs, high-impedance)
- 46 analog inputs + 8 shared analog/digital/SENT + 12 digital inputs; 12x ignition
- Logging enabled as standard: FULL_LOG_1 (4 GB) + FULL_LOG_2 (4 GB) + DATA_USB; PERF_LOG_1 (16 GB) optional; download up to 6.2 MB/s
- 5x CAN (3 CAN-FD capable); LTE/Ethernet telemetry support; dual-core 1 GHz CPU with FPGA
- Dual electronic-throttle safety strategy; turbo, traction and launch control standard
- MATLAB/Simulink code generation for custom functions
- 198 x 180 x 42 mm, 1,560 grams; 6-18 V supply; -20 to 85°C

Where it sits
The MS 7 is the professional platform above the MS 6 EVO range, more inputs, faster processing, higher injection speed ranges and full logging enabled out of the box. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Data sheet (PDF)

3D CAD Data (STEP)
