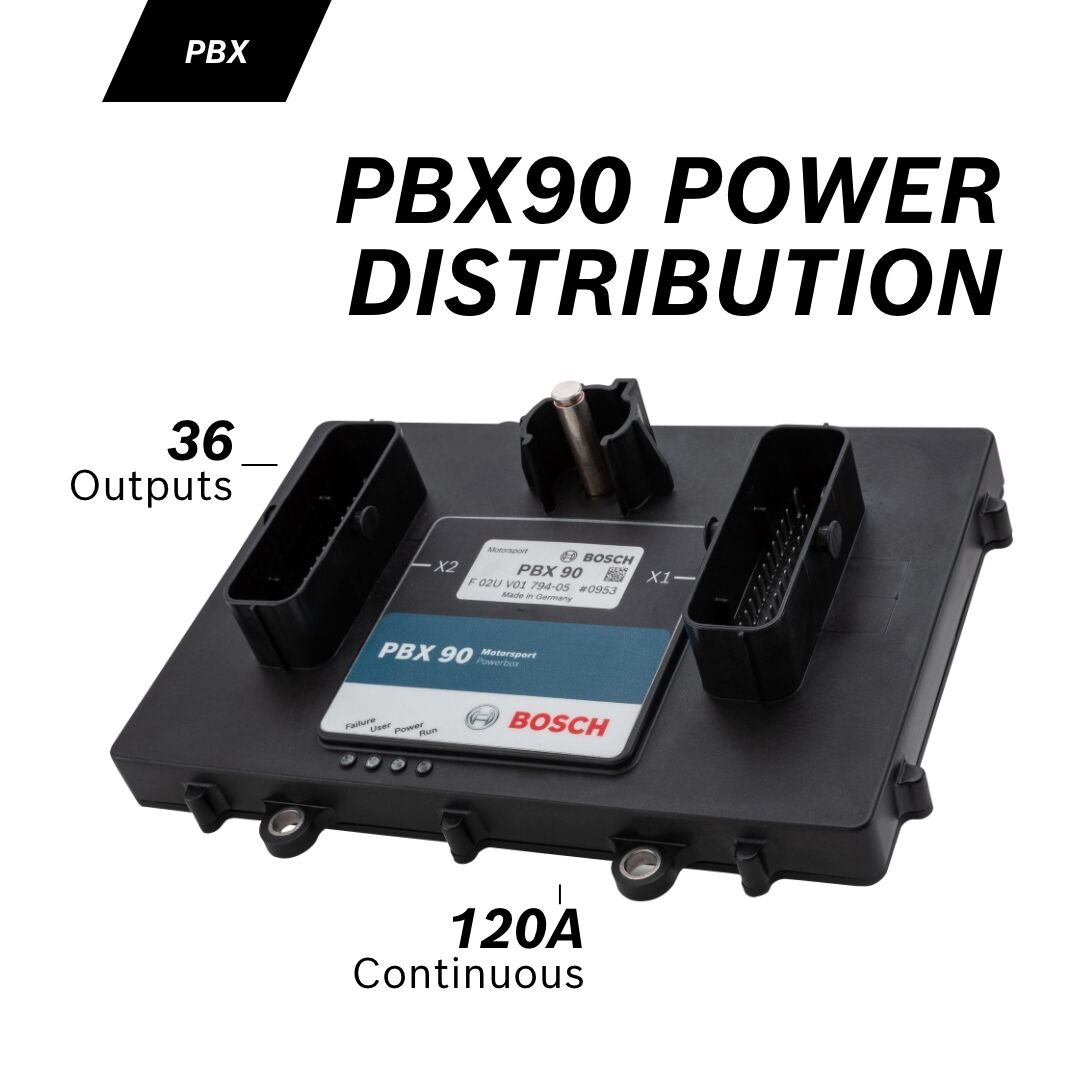

Bosch Power Distribution Module - PBX90

Bosch part number: F02U.V01.794-05 (F02UV01794-05)

Intelligent power distribution for the whole car: the PBX 90 replaces conventional relays, fuses and circuit breakers with 36 electronically controlled, diagnosable outputs, simplifying the harness and putting the electrical system on the data bus.

- 120 A continuous (180 A peak, 2 s) across 36 outputs: 4x up to 40 A, 4x up to 25 A, 22x up to 15 A, plus 6 multi-purpose outputs (low side, high side, push-pull, PWM; two stages combinable into an H-bridge)
- 12 analog inputs (16-bit, switchable pull-ups) + 4 digital inputs
- 3x CAN, 2x Ethernet, 1x LIN (Bosch Motorsport LIN devices supported); 5 V/400 mA sensor supply
- Programmed via the Bosch PBX Suite; 214 x 159 x 57.5 mm, 830 grams, 5-20 V supply
- CCA option available, run your own code on the device

How a PDM changes the build
Every circuit becomes software: current limits, retry strategies, load shedding and switching logic are configured, not wired. Faults are diagnosed per channel from the data system instead of hunting blown fuses trackside.

Pairs well with: the CAN Keypad CK-M12 for cockpit control; buttons and LED feedback ride the same CAN bus, no extra wiring. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.
