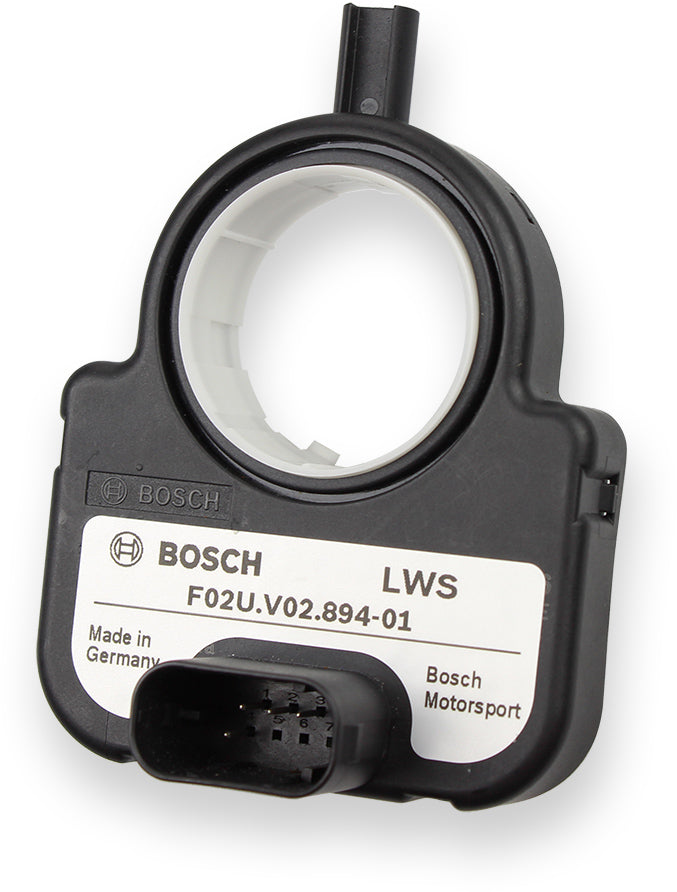

Bosch Steering Wheel Angle Sensor LWS

Bosch part number: F02U.V02.894-01 (F02UV02894-01)

Absolute steering-angle and steering-speed measurement on CAN, using the giant magneto-resistive (GMR) effect with toothed measuring gears.

- Steering wheel angle ±780°, 0.1° resolution
- Angular speed 0 to 1,016°/s, 4°/s resolution
- 500 kbaud CAN output with defined messages (0x2B0 status/angle/speed, 0x7C0 configuration) and validity flags
- 83 x 60 x 21.35 mm, approx. 34 grams, IP5K0; -40 to 85°C; 7–16 V, <150 mA
- Bosch 7-pole connector (mating connector F02U.B00.656-01, available to order)
- Zero the sensor after every assembly

When you need it
Steering angle is the input that unlocks driver-behaviour analysis, and vehicle-dynamics functions that need to know intent — from data review to stability and ABS-adjacent strategies. Not sure what your programme needs? Talk to us — 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.
