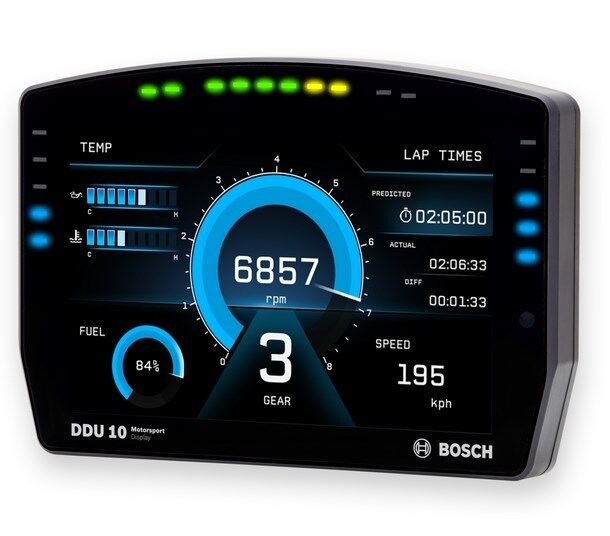

Bosch Digital Dash Logger - DDU10

Bosch part number: F02U.V02.659-01 (F02UV02659-01)

Programmable 7" colour dash with an integrated data logger: display, logging and sensor interface in one IP67 unit.

- 7" colour display, 800 x 480, 12 user-configurable pages
- 20 freely configurable multicolour LEDs (10 top, 5 each side)
- Integrated logger: 4 GB, 100 channels at 20 Hz standard, licence-upgradable to 1,500 channels at 1 kHz and a second 4 GB partition; download up to 4 MB/s
- 4 analog inputs standard (12 more optional, 0-5 V 12-bit); 4x wheel-speed inputs (Hall or DF11, switchable)
- 2x CAN standard (2 more optional), 3x Ethernet, RS232 for telemetry/GPS, laptrigger input; up to 256 user-configurable CAN IDs
- 667 MHz dual-core; 6-18 V supply, 2 A at 12 V; 198 x 134 x 35 mm, 875 grams, IP67
- Options include ABS diagnostics in-display (read/erase ABS error memory, repair bleed) for ABS M5 cars

Choosing between DDU 10 and DDU 11
- DDU 10: 7" display, 20 configurable RGB LEDs, 2 CAN standard, 4+12 analog inputs, 875 grams: the I/O-rich choice when the dash is also your logger and sensor hub
- DDU 11: 6.5" display, 649 grams, 48 configurable pages (4 sets of 12), faster 6.2 MB/s download: the lighter, page-rich choice, with extra I/O and a 2nd CAN unlockable by software
Both log 4 GB / 100 channels standard, expandable by licence to 1,500 channels at 1 kHz. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Pairs well with: CAN Keypad CK-M12 and MSA Box II for configuration and diagnostics.

Data sheet (PDF)
