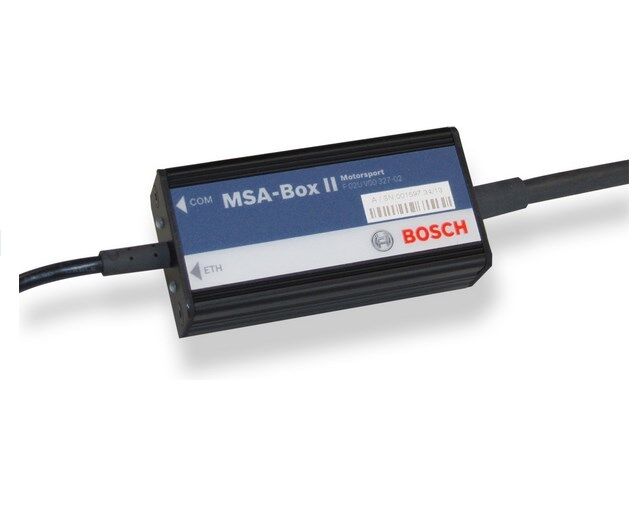

Bosch MSA Box II - Diagnostics Cable

Bosch part number: F02U.V00.327-03 (F02UV00327-03)

The MSA-Box II is the PC communication interface for the Bosch Motorsport system, calibration, configuration and diagnostics over Ethernet, K-Line or CAN, connected to your laptop by USB.

- USB 2.0 high-speed to the PC; Ethernet 100 Mbit, K-Line 300 Bd-320 kBd, CAN 10 kbit-1 Mbit on the vehicle side
- Galvanic separation on all PC-side I/O; powered from USB (approx. 0.5 W)
- 84 x 38 x 25 mm; vehicle-side supply 8-32 V; 2 m diagnosis lead
- Works with RaceCon and WinDarab on Windows 10

When you need it
One box covers the whole Bosch ecosystem: MS 6 EVO ECUs, ABS M5 kits, PBX 90, DDU displays and CAS: Bosch lists it across all of them as the standard diagnostics link (not needed twice if you already own one).

Used with: MS 6 EVO ECUs · ABS M5 · PBX 90 · DDU 10 / DDU 11.

Data sheet (PDF)
