Bosch MS6.x ECU Customer Code Area

Bosch part number: F02U.V02.137-01 (F02UV02137-01)

Customer Code Area (CCA): run your own software code on the ECU, protected from anyone else's access, in parallel with all standard functionality.

What it unlocks

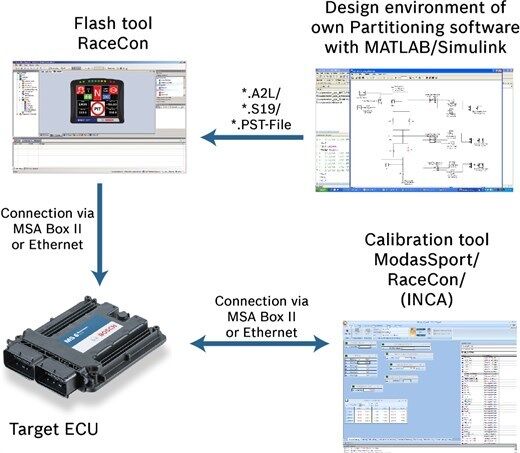

- Your own control logic, developed in MATLAB/Simulink, running on the MS 6 EVO
- Bosch model supplied as a compiled library with Simulink interfaces to all I/O
- Calibration and measurement over XCP via Ethernet; download via RaceCon
- This part number enables CCA per device; the development environment is a separate item, and maintenance is free for the first 12 months

When you need it
Teams and engineering firms with proprietary control strategies (hybrid systems, custom aero or driveline logic) who need factory-grade hardware without disclosing their IP.

How MS 6 software packages work
The MS 6 EVO hardware ships identical across the range; capability is unlocked by licence. A package is delivered as an activation for your ECU: no hardware changes, no downtime beyond the update. That lets a programme start on a lean specification and add logging, functions or measurement capacity when the car actually needs them.

Related: MS 6.1 EVO, MS 6.2 EVO, MS 6.3 EVO and MS 6.4 EVO. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Data sheet (PDF)
