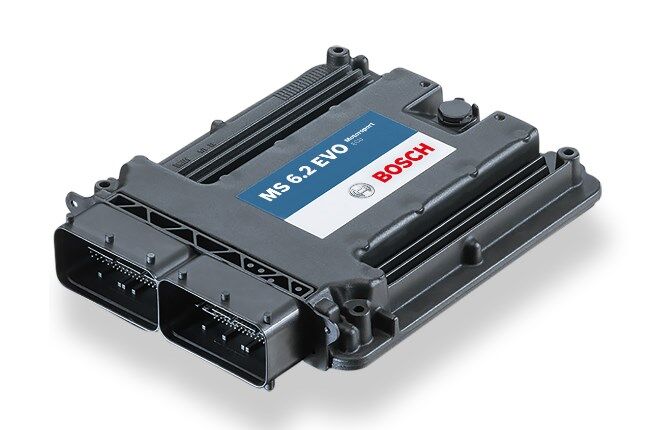

Bosch part number: F02U.V03.115-01 (F02UV03115-01)
Port-injection engine management for up to 12 cylinders, with the Engine Function I-II and Measurement package content built in as standard.
- Low-pressure (port) injection, up to 12 cylinders to 12,500 rpm, high-impedance injectors
- 38 analog inputs standard (vs 21 base on the MS 6.1 EVO)
- Electronic throttle (dual, with integrated safety strategy), VVT, turbo, traction and launch control all standard, no function packages needed
- 12x ignition outputs; 2x Ethernet, 3x CAN, 1x LIN, 8x SENT, 1x RS232
- IP54 aluminium housing, 1,086 grams, 6-18 V supply
How the MS 6 EVO range works
All four MS 6 EVO models share the same hardware platform:
- 226 x 181 x 44 mm aluminium housing, 1,086 grams, two Bosch connectors (196 pins)
- Dual-core 667 MHz CPU with FPGA; 6-18 V supply
- 2x Ethernet, 3x CAN, 12 ignition outputs
- Port injection for up to 12 cylinders at up to 12,500 rpm
What changes between models is injection capability (port-only vs direct + port) and how much measurement and function content is included versus unlocked later by software package. You can start lean and add capability as the programme grows; the packages install as licences, no hardware swap.
Choosing a model
- MS 6.1 EVO, port injection; 21 analog inputs, the entry point: engine functions and extra measurement unlock via packages
- MS 6.2 EVO: port injection; the Engine Function I-II and Measurement package content included as standard (38 analog inputs)
- MS 6.3 EVO, direct + port injection; 21 analog inputs base, Measurement and second-HP-pump packages optional
- MS 6.4 EVO: direct + port injection; Measurement (38 analog inputs) and second-HP-pump content included
- MS 6.4P EVO: same hardware, running its own torque-structure project software line (not compatible with MS 6.4 EVO software)
Logging upgrades, gear control, CCA and the Innovation licences are separate options on all models.
Above the MS 6 sits the MS 7.8 / MS 7.8-ADV: more inputs, faster processing and full logging included as standard. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.
To complete the installation: 91-pin mating connector and 105-pin mating connector for harness builds.
