Bosch MS6.x ECU Gear Control Package II

Bosch part number: F02U.V02.108-01 (F02UV02108-01)

Bosch Motorsport's own gear-control licence for the MS 6 EVO range.

What it unlocks
- Bosch gear control functionality on any MS 6 EVO, the Bosch-native alternative to the MEGA-Line route of Gear Control Package I

When you need it
Sequential-gearbox programmes wanting closed-loop shifting handled by the ECU itself.

Related separate licences (ordered separately)
For drag programmes, Bosch also offers SW Package MS 6 Drag 1 (launch time/distance, torque pre-control, launch RPM control, universal outputs) and SW Package MS 6 Drag 2 (requires Drag 1; adds time/distance boost control, driveshaft speed and gradient control, acceleration control and wheelie control, with an MM5.10 acceleration sensor included). Both available to order, talk to us.

How MS 6 software packages work

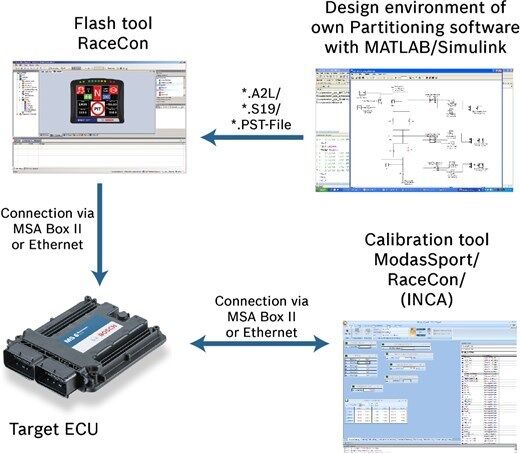

The MS 6 EVO hardware ships identical across the range; capability is unlocked by licence. A package is delivered as an activation for your ECU: no hardware changes, no downtime beyond the update. That lets a programme start on a lean specification and add logging, functions or measurement capacity when the car actually needs them.

Related: MS 6.1 EVO, MS 6.2 EVO, MS 6.3 EVO and MS 6.4 EVO. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.
