Bosch MS6.x ECU Measurement Package

Bosch part number: F02U.V02.000-01 (F02UV02000-01)

Licence package adding measurement capacity to the MS 6.1 EVO and MS 6.3 EVO.

What it unlocks
- 17 additional analog inputs, taking the base 21 to 38, matching the MS 6.2/6.4 standard fit
- 8 digital channels usable as shared analog/digital inputs
- 1 additional K-type thermocouple input

When you need it
Sensor counts grow fast on a serious car, dampers, brake and tyre temperatures, multiple pressures. If your MS 6.1 or 6.3 EVO is running out of analog inputs, this is the unlock; the MS 6.2 and 6.4 EVO already include it.

How MS 6 software packages work

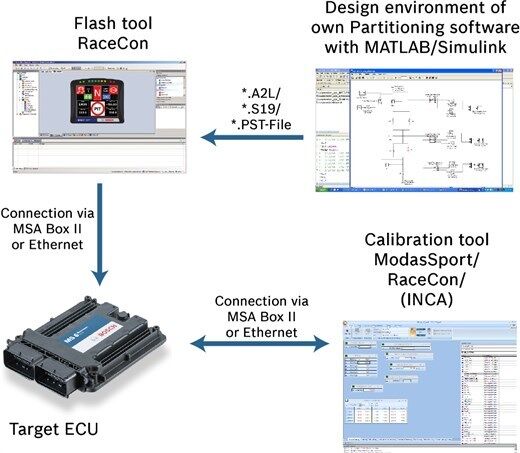

The MS 6 EVO hardware ships identical across the range; capability is unlocked by licence. A package is delivered as an activation for your ECU: no hardware changes, no downtime beyond the update. That lets a programme start on a lean specification and add logging, functions or measurement capacity when the car actually needs them.

Related: MS 6.1 EVO, MS 6.2 EVO, MS 6.3 EVO and MS 6.4 EVO. Not sure what your programme needs? Talk to us. 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.
