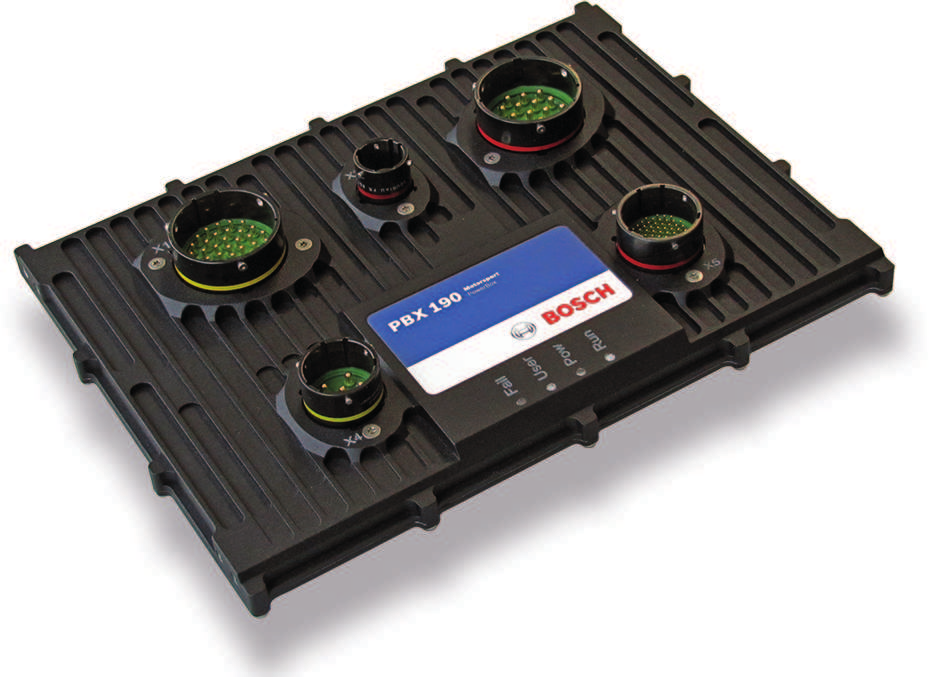

Bosch PowerBox PBX 190

Bosch part number: F02U.V02.626-04 (F02UV02626-04)

The flagship PowerBox — an intelligent control and power-distribution unit for the electric grid of a modern racing car. It replaces conventional relays, fuses and circuit breakers, simplifies the wiring harness and provides diagnostic capabilities, with complex functions programmed through the Bosch Motorsport PBX Suite.

- 250 A continuous output current; >310 A peak (2 s)
- 52 outputs: 4x high power up to 40 A (parallel up to 80 A), 10x high power up to 25 A, 26x high power up to 15 A, 4x high side up to 25 A at up to 48 V, 8x multi-purpose up to 15 A (low side, high side, push-pull, PWM; two output stages can combine into an H-bridge)
- 18x analog inputs (16 bit resolution, switchable pull-up resistors); 10x digital inputs (switchable pull-up/pull-down)
- 2x sensor supplies, 5 V 400 mA, each with individual ground pin
- 3x CAN, 2x Ethernet, 1x LIN — control of Bosch Motorsport LIN devices included
- 245 x 183 x 37 mm, 1,270 grams, IP67; 5 to 16 V supply, <1 A consumption; -20 to 85°C at internal sensors, vibration profile 1
- Inspection service recommended after 220 h or 2 years, no components to replace

Where it sits
The PBX 190 is the flagship of the PowerBox range, above the PowerBox PBX 90: 250 A continuous against the PBX 90's 120 A, 52 outputs against 36, plus four high-side channels rated to 48 V. If your car's electrical load fits within 120 A continuous and 36 outputs, the PBX 90 is the right choice. Mating connectors X1 to X5 are available from 909. Talk to us — 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Data sheet (PDF)
