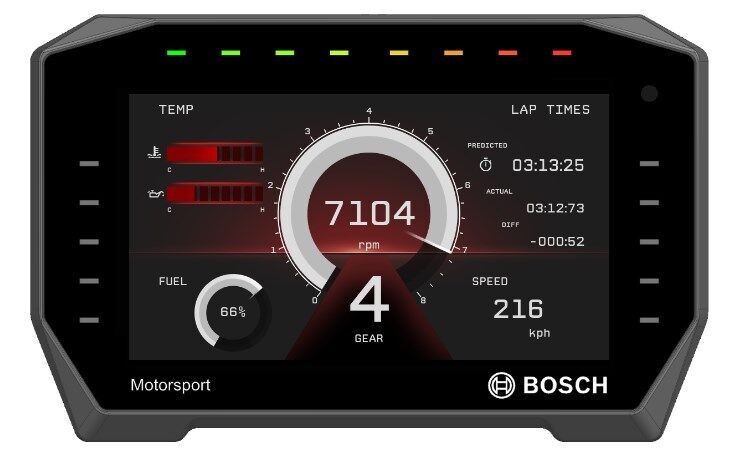

Bosch Digital Dash Logger - DDU11

Bosch part number: F02U.V03.208-03 (F02UV03208-03)

Programmable 6.5" colour dash with an integrated data logger — the lighter, page-rich display of the range at 649 grams.

- 6.5" colour display, 800 x 480, 48 user-configurable pages (12 pages x 4 switchable sets)
- 8 top LEDs + 5 each side; Ultracap real-time clock holds time for 2 weeks
- Integrated logger: 4 GB, 100 channels at 20 Hz standard — licence-upgradable to 1,500 channels at 1 kHz and a second 4 GB partition; download up to 6.2 MB/s
- 1x CAN + 2x Ethernet standard; a 2nd CAN or RS232, plus 4 analog/digital and laptrigger inputs, unlock with the IO_EXTENS licence
- Up to 256 user-configurable CAN IDs; 667 MHz dual-core; 6–18 V supply
- 203 x 128 x 38.5 mm, 649 grams, IP67
- Options include ABS diagnostics in-display (read/erase ABS error memory, repair bleed) for ABS M5 cars

Choosing between DDU 10 and DDU 11
- DDU 10 — 7" display, 20 configurable RGB LEDs, 2 CAN standard, 4+12 analog inputs, 875 grams: the I/O-rich choice when the dash is also your logger and sensor hub
- DDU 11 — 6.5" display, 649 grams, 48 configurable pages (4 sets of 12), faster 6.2 MB/s download: the lighter, page-rich choice, with extra I/O and a 2nd CAN unlockable by software
Both log 4 GB / 100 channels standard, expandable by licence to 1,500 channels at 1 kHz. Not sure what your programme needs? Talk to us — 909 supplies, installs, supports and calibrates the full Bosch Motorsport range.

Pairs well with: CAN Keypad CK-M12 and MSA Box II for configuration and diagnostics.

Data sheet (PDF)
